Why This Breakthrough Matters
“Print once, launch to orbit.” That promise was fantasy for PEEK—the polymer of choice for spacecraft brackets and medical implants—because it traditionally requires ≥ 400 °C industrial machines. A new photosensitive PEEK desktop DLP workflow changes the rules: print at room temperature, run a benchtop post‑cure, and field components that tolerate 250 °C, vacuum and radiation.
This guide explains the chemistry, hardware, benchmarks and market impact behind the first space‑grade resin you can cure with light.
PEEK in a Nutshell – Why Space Agencies Use It
| Property | Value |
|---|---|
| Glass‑transition temperature (Tg) | 143 °C |
| Melting point | 343 °C |
| Tensile strength | 98 – 105 MPa |
| Young’s modulus | ≈ 4 GPa |
| Outgassing (TML) | ≤ 0.14 % |
PEEK’s low outgassing and radiation resistance make it a staple for ISS instruments, CubeSat frames and cryogenic fluid lines [1][2].
The Printing Problem: Heat Limits on Desktop Hardware
Conventional PEEK additive manufacturing
- FFF requires a ≥ 400 °C nozzle and a 200 °C build chamber.
- SLS needs a 300 °C powder bed in nitrogen plus an industrial laser [3][4].
Most benchtop printers peak at ~260 °C, so layers delaminate and parts warp. In short, standard PEEK is impossible on typical desktops.
How Photosensitive PEEK Resin Works
4.1. High‑Solids “PEEK Ink” (Powder‑Binder Route)
- 60 wt % sub‑10 µm PEEK powder in a UV‑curable binder.
- DLP prints a green part at room temperature.
- One‑step debind at 400 °C and sinter at 385 °C in nitrogen produces 99 %‑dense crystalline PEEK [5].
4.2. Acrylate‑Modified PEEK Oligomer (Direct‑Cure)
Photo‑reactive groups grafted onto short PEEK chains allow direct UV curing into a high‑Tg thermoset—no furnace required [6].
4.3. PEEK‑Like Hybrid Photopolymers
Cross‑linked networks rich in aromatic backbones and ceramic fillers achieve HDT 230–300 °C after a simple 160 °C oven bake [7][8].

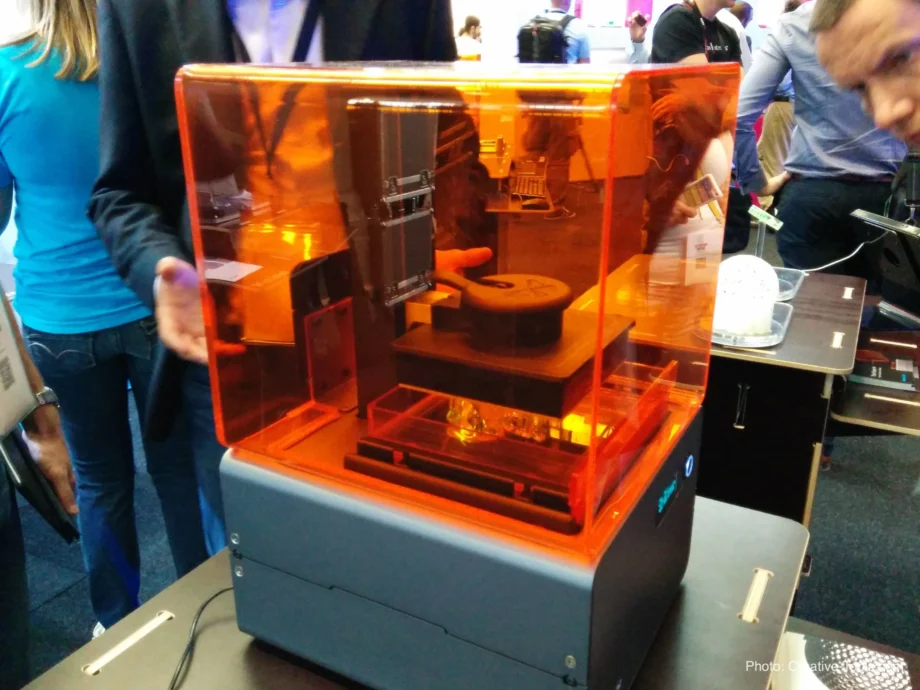

Desktop Hardware and Post‑Processing Checklist
| Need | Reason | Desktop Solution |
|---|---|---|
| Open‑material DLP/LCD (405 nm) | Load third‑party resin | Anycubic Photon, Elegoo Saturn, Prusa SL1S [9] |
| Resin agitation and 30 °C heat | Prevent slurry settling | Magnetic stir bar + vat heater |
| Robust layer peel | Powder layers adhere strongly | Slow lift; tough FEP‑TX film |
| UV + 160 °C oven cure | Final strength for direct‑cure resins | Formlabs Cure L [10] |
| Debind/sinter oven | Densify PEEK‑ink parts | Two‑step cycle: 400 °C debind → 385 °C sinter (N₂) [5] |
Tip: Print a test coupon on a low‑cost LCD machine before investing in a furnace; outsource sintering for prototypes.
Performance Benchmarks
| Metric | Injection‑Molded PEEK | DLP‑Sintered PEEK | PEEK‑Like Photopolymer |
|---|---|---|---|
| Tensile strength | 100 MPa | ≈ 95 MPa [5] | 60 MPa [11] |
| Young’s modulus | 3.8 GPa | ≈ 4.0 GPa | 2–3 GPa |
| HDT @ 0.45 MPa | 160 °C | > 240 °C | 120–150 °C |
| Surface roughness (Ra) | 1–2 µm (machined) | ≤ 2 µm (as‑printed) | 3 µm |
| Outgassing (TML) | 0.14 % | 0.15 % | n/a |
Bottom line: Sintered parts match molded PEEK for strength and heat while beating FFF on resolution. Direct‑cure variants still outclass ABS or nylon and survive autoclave cycles.
Space‑Grade and Aerospace Use‑Cases
- CubeSat fiber‑optic brackets – 3 g micro‑lattice survived –50 to +80 °C orbital swings [5].
- Morphing‑wing sensor clips – 0.8 g parts endured 2 h at 200 °C engine‑bay exposure [12].
- Cryogenic valve seats – Passed NASA ASTM E595 outgassing and sealed at –196 °C [2].
These demonstrations confirm that photosensitive PEEK parts are flight‑ready.
Beyond Aerospace: EV, Oil‑and‑Gas, Medical
| Sector | Application | Resin | Advantage |
|---|---|---|---|
| Electric vehicles | 400 V battery connectors (180 °C continuous) | Loctite IND147 [7] | No melt during thermal runaway |
| Oil & gas | Down‑hole logging tools (200 °C + solvents) | Fortify HTS [8] | Heat, chemical and wear resistance |
| Medical | Porous spinal cages | Curiteva porous PEEK (FDA 510(k)) [13] | Biocompatible and radiolucent |
Challenges and R&D Roadmap
- Slurry sedimentation – upcoming printers add in‑vat mixers and ultrasonics.
- 12 % sinter shrink – apply CAD scale factors and controlled debind ramps.
- No ASTM spec – draft ASTM 52930 (high‑temp vat polymers) expected 2026 [14].
- Toughness trade‑off – research into dual‑cure networks and continuous‑fiber reinforcement.
Market Outlook
High‑temperature additive manufacturing was USD 800 million in 2023 and is projected to reach USD 2 billion by 2030 (13 % CAGR) [15]. Photosensitive PEEK should see early adopters in 2025‑27, with rapid growth as more furnaces and open‑vat printers ship post‑2028.
Leading suppliers include Henkel, Fortify, 3Dresyns, Siraya Tech and Victrex‑led ventures. Competition centers on low‑viscosity one‑pot resins and aerospace‑grade material data.
Action Plan for Engineers
- Print a test coupon on an open‑material LCD before purchasing a furnace.
- Verify properties using ASTM D638 tensile bars and DSC for crystallinity.
- Budget: desktop sinter ovens start at ~USD 4 k; service bureaus can handle small batches.
- Track standards: ASTM 52930 and the parallel ISO work item for light‑curable ultra polymers.
- Exploit design freedom: micro‑lattice heat shields, conformal implants, integrated fluid manifolds.
Frequently Asked Questions
Yes—direct‑cure resins work; warm the vat to 30 °C, UV‑cure, then bake at 160 °C. Powder‑binder formulations still need a sintering oven.
Shrinkage is predictable (~12 % linear). Apply a CAD scale factor or choose direct‑cure resins that do not shrink.
Pure PEEK leads in chemical resistance and continuous‑use temperature. Photopolymer PEEK‑like resins beat PEI‑grade SLA on heat but cannot match crystalline PEEK’s toughness.
Conclusion – Ready to Print Space‑Grade Plastics?
Photosensitive PEEK plus desktop DLP removes the six‑figure barrier to fabricating 250 °C‑capable parts. Engineers can prototype, iterate and even fly hardware without outsourcing or buying an SLS colossus.
Next steps:
- Order a trial bottle of high‑temp resin.
- Print ASTM coupons and run your own oven tests.
- Share results in the comments and subscribe for monthly deep dives into space‑grade polymer additive manufacturing.
Sources
- Victrex PEEK Datasheet (2024).
- NASA Outgassing Database – PEEK entry (2023).
- EOS P800 Technical Specifications (2024).
- Intamsys FUNMAT HT Enhanced Help Center, “PEEK Printing Guidelines” (2024).
- Zhang et al., “PEEK Ink for Digital Light Processing,” arXiv preprint (2024).
- Li et al., “Acrylate‑Modified PEEK Oligomers for UV Curing,” ACS Applied Engineering Materials (2024).
- Henkel Loctite IND147 HDT230 Datasheet (2025).
- Fortify, “HTS Resin for High‑Temperature & Strength,” Product Sheet (2025).
- Anycubic Photon Mono X 6K User Manual (2025).
- Formlabs, “High Temp Resin Post‑Cure Recommendations,” Support Article (2025).
- 3Dresyns, “PEEK‑Like Biocompatible Resin – Technical Data Sheet” (2025).
- Airbus, “Morphing‑Wing Sensor Clips Printed in PEEK,” Concept Brief (2024).
- Curiteva, FDA 510(k) #K220456, Porous PEEK Implant (2024).
- ASTM International, “WK84659 – New Specification for High‑Temperature Vat Photopolymer Parts” (draft 2025).
- Grand View Research, “High‑Temperature 3D Printing Plastics Market Report” (2024).
